"Precision turbines and fans are tricky to manufacture. We added Blade Expert to our shop’s ‘toolbox’ because it gives us complete control and doesn’t require a lot of training. It definitely keeps us ahead.”

Specialized Multiaxis Programming For Multi-Bladed Parts

Simon Griffiths-Hughes, 5-Axis Manager
GP Precision Engineering

Blade Expert

Read the FGP Systems Case Study

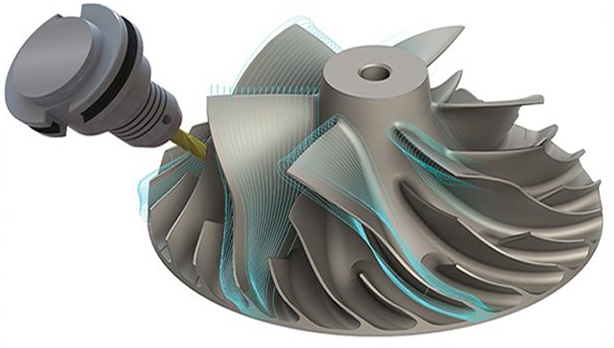

Generating toolpaths for impellers, fans, and marine propellers is a complex 5-axis challenge. Machining these multibladed shapes usually requires special multistep, multiaxis programming, but Mastercam Blade Expert provides a

comprehensive solution for various blade configurations

. The interface follows the Mastercam standard used by all Mastercam Multiaxis toolpaths, ensuring a short learning curve and successful deployment. Blade Expert turns your multiblade machining challenges into routine solutions:

Remove the material from between the blades.
Finish the blades/splitters.
Finish the floor.
Finish the fillets.

Blade Expert works seamlessly with Mastercam® Mill 3D and Mastercam Router 3D.

Self-Contained processing

Multiblade parts come in many configurations, but Blade Expert’s common-sense operation process turns these machining challenges into reliable solutions:

key Features

Additional Benefits

The interface follows the well-established Mastercam standard used by all other multiaxis toolpaths, ensuring a short learning curve.

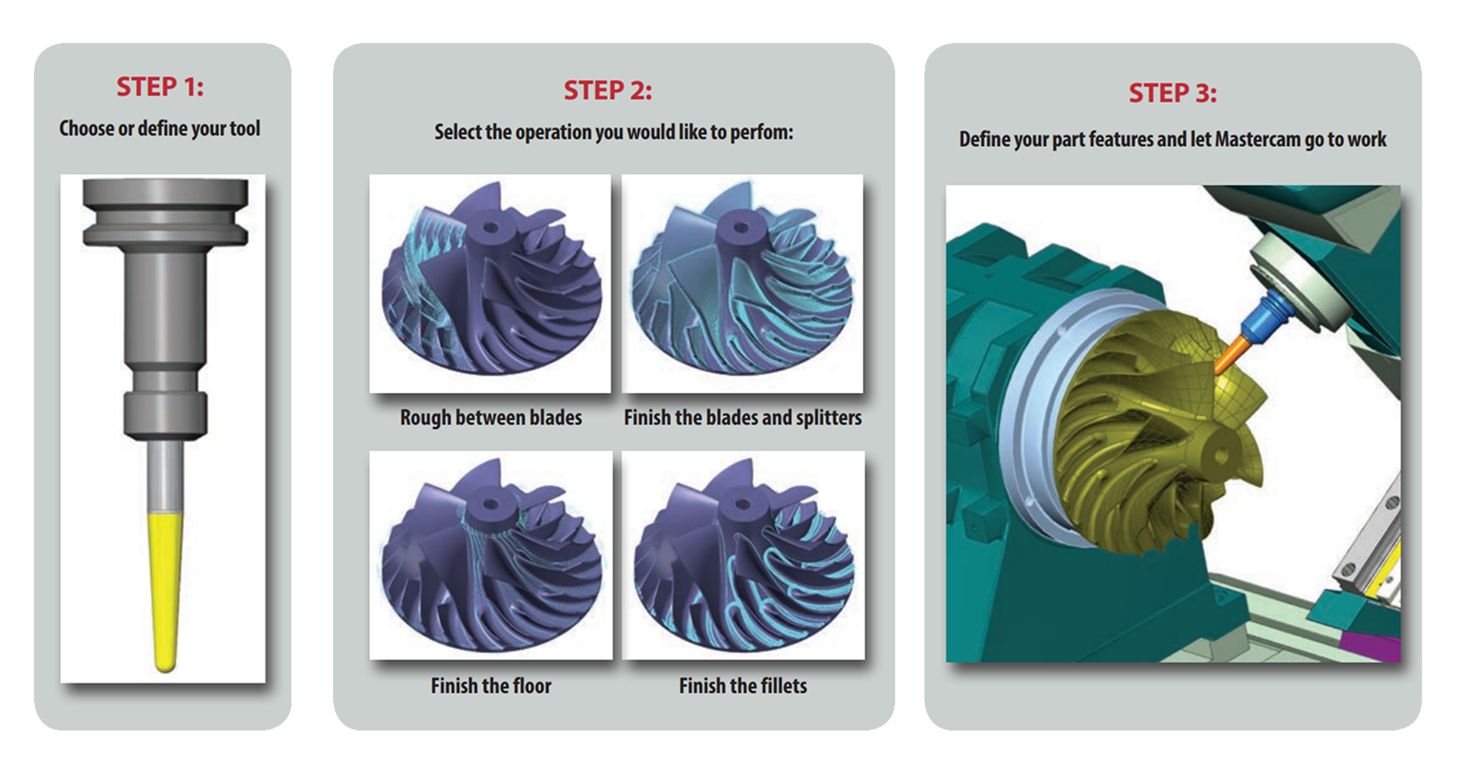

The Blade Expert Process

Overview of Blade Expert Software

Blade Expert is an advanced software solution designed specifically for the machining of complex multiblade parts. It streamlines the programming process, allowing users to efficiently generate toolpaths for intricate geometries such as impellers and fans.

This software integrates seamlessly with Mastercam, enhancing its capabilities and providing users with a robust tool for tackling the challenges of multiaxis machining. By simplifying operations, Blade Expert empowers manufacturers to achieve higher productivity and precision in their machining processes.

Key Features of Blade Expert

Blade Expert offers a range of features that cater to the specific needs of multiblade machining. Key functionalities include support for various cutter types, such as straight, bull, and ball nose cutters, ensuring versatility in machining operations.

In addition to cutter support, the software is designed for precise and efficient cut patterns, enabling users to produce high-quality finishes on complex parts. These features collectively enhance the workflow and reduce the time required for setup and production.

Benefits of Using Blade Expert in Manufacturing

Utilizing Blade Expert in manufacturing processes translates to significant advantages, including improved accuracy and reduced machining time. The software's intuitive interface allows operators to quickly adapt and implement complex machining strategies without extensive training.

Moreover, the ability to handle various blade configurations efficiently means that manufacturers can respond to diverse production demands, ultimately leading to increased operational flexibility and competitiveness in the market.

Case Studies: Success Stories with Blade Expert

Numerous manufacturers have successfully implemented Blade Expert to optimize their machining processes. For instance, GP Precision Engineering reported substantial improvements in their production efficiency after adopting the software for their multiaxis machining needs.

These case studies highlight not only the effectiveness of Blade Expert in real-world applications but also provide valuable insights into best practices and strategies for maximizing the software's potential in various manufacturing scenarios.
